RRC2040-2

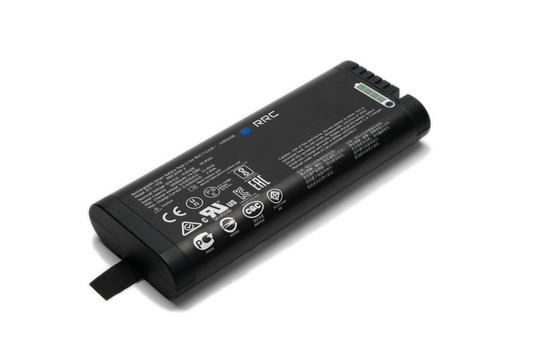

Standard battery pack RRC2040-2 (3S2P)
with 10.80V / 6.90Ah / 74.52Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart batteries with numerous features according to the SMBus specification
- Integrated LED State of Charge (SoC) indicator
- State-of-the-art lithium-ion cells with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features, e.g.:
- CUV (Cell Under Voltage): protection against deep discharge
- COV (Cell Over Voltage): protection against over charge
- OTC (Over Temperature in Charge): Protection against overheating while charging
- OTD (Over Temperature in Discharge): Protection against overheating during discharging
- Increased ESD protection up to 8kV
- SHA-1 cryptosystem to prevent plagiarism
- Life expectancy: Up to 80% of initial capacity after 800 cycles
你需要更多的信息吗？
产品数据表 RRC2040-2
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 50°C max. |
| Electrical Parameters | |
|---|---|
Nominal voltage | 10.80V |
Nominal capacity | 6.90Ah |
Initial impedance | <180mΩ @ 1kHz at 25°C |
Max. charge current | 4.83A |
Max. charge voltage | 12.60V |
Max. discharge current | 7.50A |
| Battery Dimensions | |
|---|---|
Length | 150.25mm +0.25/-0.25 |
Width | 58.75mm +0.25/-0.25 |
Thickness | 21.90mm +0.50/-0.25 |
Weight | 336g |
Contacts | +, D, C, T, - |
| Ingress protection | IP40 |
| Safety Parameters PCM | |
|---|---|
Overcharge detection voltage / cell | 4.23V |
Overdischarge detection voltage / cell | 2.50V |
Overcharge detection current | 6.70A |
Overdischarge detection current | 8.00A |
Links zu den Downloads
POWERPAQ RRC2040-2 is approved worldwide
