RRC2057

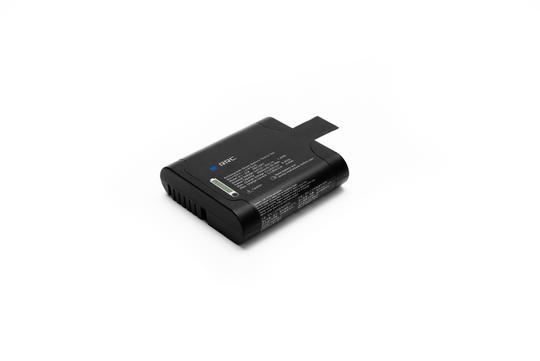

Standard battery pack RRC2057 (2S2P)
with 7.20V / 6.90Ah / 49.70Wh

• Worldwide approvals and certification of safety standards
• No development costs, fast time-to-market
• Smart batteries with numerous features according to the SMBus specification
• Integrated LED State of Charge (SoC) indicator
• State-of-the-art lithium-ion cells with the market’s highest energy density
• High discharge performance
• JEITA charging profile optimization
• Numerous and redundant safety features, e.g.:
  • CUV (Cell Under Voltage): protection against deep discharge
  • COV (Cell Over Voltage): protection against over charge
  • OTC (Over Temperature in Charge): Protection against overheating while charging
  • OTD (Over Temperature in Discharge): Protection against overheating during discharging
• Increased ESD protection up to 8kV
• SHA-1 cryptosystem to prevent plagiarism
• Life expectancy: Up to 80% of initial capacity after 800 cycles

Please note that the listed product information and downloads are valid for the latest version of the RRC2057. Previous versions can be found here.
