RRC2140

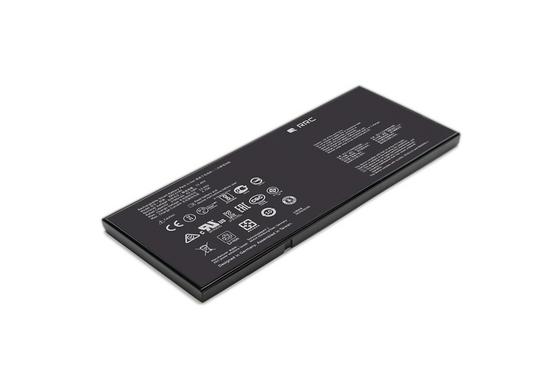

Standard battery pack RRC2140 (3S1P)
with 11.40V / 3.88Ah / 44.20Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart batteries with numerous features according to the SMBus specification
- State-of-the-art lithium-ion cells with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features, e.g.:
- CUV (Cell Under Voltage): protection against deep discharge
- COV (Cell Over Voltage): protection against over charge
- OTC (Over Temperature in Charge): Protection against overheating while charging
- OTD (Over Temperature in Discharge): Protection against overheating during discharging
- Increased ESD protection up to 8kV
- SHA-1 cryptosystem to prevent plagiarism
- Life expectancy: Up to 80% of initial capacity after 800 cycles
你需要更多的信息吗？
产品数据表 RRC2140
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 60°C max. |
| Electrical Parameters | |
|---|---|
Nominal voltage | 11.40V |
Nominal capacity | 3.88Ah |
Initial impedance | <200mΩ @ 1kHz at 20°C |
Max. charge current | 2.70A |
Max. charge voltage | 13.05V |
| Cont. discharge current | 3.78A |
Max. discharge current | 5.67A |
| Battery Dimensions | |
|---|---|
Length | 212.90mm +0.50/-0.50 |
Width | 86.20mm +0.40/-0.40 |
Thickness | 8.35mm +0.25/-0.25 |
Weight | 255g |
Contacts | +,+,C,D,T,-,- |
| Ingress protection | IP40 |
| Safety Parameters PCM | |
|---|---|
Overcharge detection voltage / cell | 4.39V |
| Overcharge release voltage / cell | 4.20V |
Overdischarge detection voltage / cell | 2.75V |
| Overdischarge release voltage / cell | 3.25V |
Overcharge detection current | 3.10A |
Overdischarge detection current | 6.00A |
FLATPAQ RRC2140 is approved worldwide
