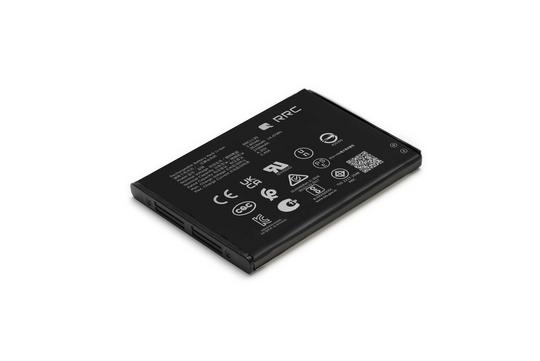

RRC1130
Standard battery pack RRC1130 (1S1P)
with 3.80V / 3.88Ah / 14.70Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart battery with numerous features and I2C communication
- State-of-the-art lithium-ion cell with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features, e.g.:
- CUV (Cell Under Voltage), protection against deep discharge
- COV (Cell Over Voltage), protection against over charge
- Increased ESD protection up to 8kV
- Life expectancy: Up to 80% of initial capacity after 800 cycles
你需要更多的信息吗？
产品数据表 RRC1130
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 60°C max. |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / UN38.3 / RoHS / REACH |
| Electrical Parameters | |
|---|---|
Nominal voltage | 3.80V |
Nominal capacity | 3.88Ah |
Initial impedance | <60mΩ @ 1kHz at 20°C |
Max. charge current | 2.40A |
Max. charge voltage | 4.35V |
Cont. discharge current | 3.00A |
| Battery Dimensions | |
|---|---|
Length | 83.70mm ±0.50 |
Width | 61.03mm ±0.40 |
Thickness | 6.80mm max. |
Weight | 69g |
Contacts | +, - , SDA (NTC), SCL |
| Safety Parameters PCM | |
|---|---|
Overcharge detection voltage | 4.40V |
Overdischarge detection voltage | 2.80V |
Overcharge detection current | 3.00A |
Overdischarge detection current | 4.00A |
FLATPAQ RRC1130 is approved worldwide
