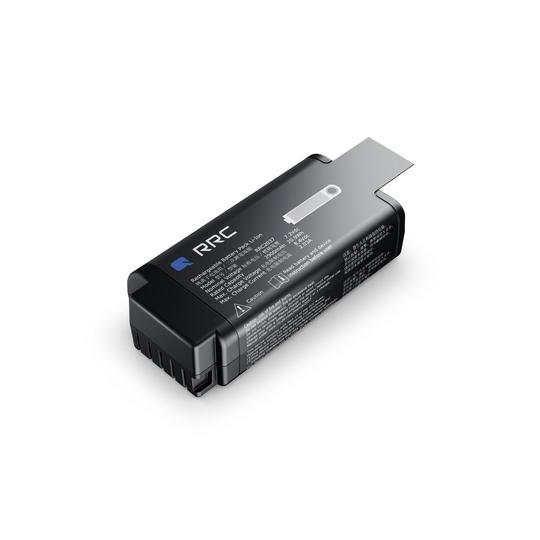

RRC2037
Standard battery pack RRC2037 (2S1P)
with7.20V / 2.90Ah / 20.90Wh
- Worldwide approvals and certification of safety standards
- No development costs, fast time-to-market
- Smart batteries with numerous features according to the SMBus specification
- Integrated LED State of Charge (SoC) indicator
- State-of-the-art lithium-ion cells with the market’s highest energy density
- High discharge performance
- JEITA charging profile optimization
- Numerous and redundant safety features, e.g.:
- CUV (Cell Under Voltage): protection against deep discharge
- COV (Cell Over Voltage): protection against over charge
- OTC (Over Temperature in Charge): Protection against overheating while charging
- OTD (Over Temperature in Discharge): Protection against overheating during discharging
- Increased ESD protection up to 8kV
- SHA-1 cryptosystem to prevent plagiarism
- Life expectancy: Up to 80% of initial capacity after 800 cycles
你需要更多的信息吗？
产品数据表 RRC2037
| General | |
|---|---|
| Delivery status (battery capacity) | <30% |
Compliance information | IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / BSMI / UN38.3 / RoHS / REACH |
| Operating temperature | 0°C to 45°C (charge) -20°C to 60°C (discharge) |
Storage temperature | -20°C to 50°C max. |
| Electrical Parameters | |
|---|---|
Nominal voltage | 7.20V |
Nominal capacity | 2.90Ah |
Initial impedance | <200mΩ @ 1kHz at 25°C |
Max. charge current | 2.03A |
Max. charge voltage | 8.40V |
Max. discharge current | 4.50A |
| Battery Dimensions | |
|---|---|
Length (min. – max.) | 85.39mm +0.40/-0.40 |
Width (min. – max.) | 41.99mm +0.40/-0.40 |
Thickness (min. – max.) | 22.40mm +0.40/-0.25 |
Weight | 121g |
Contacts | +, C, D, T, - |
| Ingress protection | IP40 |
| Safety Parameters PCM | |
|---|---|
Overcharge detection voltage / cell | 4.25V |
Overdischarge detection voltage / cell | 2.50V |
Overcharge detection current | 2.75A |
Overdischarge detection current | 4.80A |
POWERPAQ RRC2037 is approved worldwide
