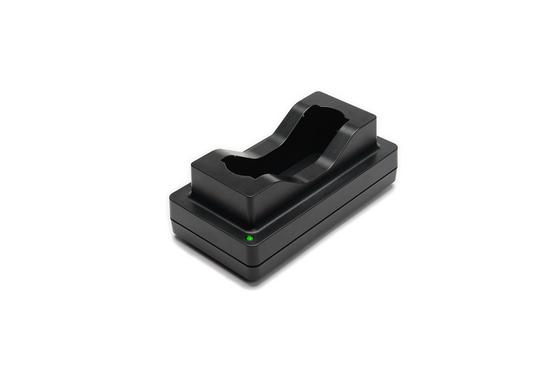

RRC-SMB-MBC
Standard Battery Charger for SMBus compliant Batteries
- Universal single bay charger
- For the standard battery packs in form factors RRC204x and RRC205x
- Optimized charging process for RRC batteries:
- Longer cycle life
- Faster charging
- Simple operation – Plug and Play
- External power supply for worldwide use
- Country specific AC input cables available
你需要更多的信息吗？
产品数据表 RRC-SMB-MBC
Specification RRC-SMB-MBC
| Input | |
|---|---|
| Voltage range | 19.00 - 26.00VDC |
| Current | 2.80A max. |
| Power | 50.00W |
| Output | |
|---|---|
| Voltage range | 0 - 17.40VDC |
| Current | 0 – 4.80A |
| Voltage tolerance | ±1% max. |
| Current tolerance | ±10% max. @1A, ±3% max. @4A |
| Protection | Short circuit, Overtemperature shutdown, |
| Environmental | |
|---|---|
| Cooling | Convection cooled |
| Temperature | Operating: 0°C bis 40°C |
| Pressure & Altitude | Operating: 1060hPa to 795hPa (-382m to 2000m) |
| Humidity | 5% to 95% r.F., non-considering |
| General | |
|---|---|
| Efficiency | ~95% to 100% load |
| Battery type | Standard battery form factors RRC204x and 205x or smart batteries with a similar footprint |
| Green procurement | RoHS 2011/65/EU WEEE 2012/19/EU Chinese RoHS |
| Indicator | Multi-color LED (green, red, orange) |
| Housing dimensions (LxWxH) | 120.00 x 64.00 x 43.00mm |
| Weight | 110g (without power supply) |
One time Red/Orange/Green | Selftest: Charger is ready for use. |
Red/Green blinking | Battery recognition and initialization. |
Orange light | The inserted battery is of the correct type and is currently being charged. |
Green light | The battery is charged and can be removed for use. |
Red blinking | The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down. |
Red light | The battery is damaged or it is a conventional battery which cannot be recharged. |
In combination with included external AC/DC power supply (PS65) | ||
Regulatory approvals | Europe | CE |
Electromagnetic Emissions | Europe | EN55011, EN55022, level B |
| USA & Canada | FCC15, class B | |
Electromagnetic Immunity | ESD immunity | EN/IEC61000-4-2 |
| Electromagnetic field immunity | EN/IEC61000-4-3 | |
| EFT / Burst | EN/IEC61000-4-4 | |
| Surge | EN/IEC61000-4-5 | |
| Conducted Immunity | EN/IEC61000-4-6 | |
| Magnetic Fields | EN/IEC61000-4-8 | |
| Voltage dips, short instrumentations & voltage variations | EN/IEC61000-4-11 | |
| Immunity characteristics | EN55024 |
Specification external AC/DC power supply (PS65)
| Input | |
|---|---|
Voltage range | 100 - 240VAC |
Current | 1.70A max. |
Stand by power | No load < 0.50W @ 230.00 VAC |
| Output | |
|---|---|
| Voltage range | 19.00VDC |
| Power | 65.00W max. |
| Current range | 3.40 A |
| Protection | Over voltage, over current, short circuit |
| Environmental | |
|---|---|
| Temperature | Operating: 0°C to 40°C |
| General | |
|---|---|
| Efficiency | California's Energy Efficiency Level VI |
Ripple & Noise | 0.24V (p-p) |
Standard output connector | DC barrel jack (5.50 x 2.50mm) |
Housing dimensions (LxWxH) | 95.00 x 51.00 x 25.40mm |
Weight | 270g |
Approvals | Europe | CE |
| International | CB | |
| USA & Canada | cULus | |
| Australia & New Zealand | RCM | |
| Russia & Eurasian Customs Union | EAC | |
| Korea | KC | |
| China | CCC | |
| Japan | PSE | |
| India | BIS |
Standard Battery Charger RRC-SMB-MBC is approved worldwide
